INNER CHAMBER SIZE 1.2 MTR X 1.2 MTR X 1.2 MTR
CONSTRUCTION INNER TANK MADE OUT OF SS 304
GRADE 3MM THICK, OUTER MS WITH POWDER COATING
POWER RATING 18 KW/440 VOLTS, 3 PHASE
HEATING MEDIA THROUGH KANTHAL A1 HEATING ELEMENT
MODE OF CONTROL :THROUGH PID DIGITAL TEMP CONTROLLER WITH THYRISTOR POWER PACK
INSULATION CERAMIC FIBRE BLANKET 64 DENSITY
CONTROL PANEL CONSISTING OF PID DIGITAL TEMP. CONTROLLER, INDICATION LAMPS,
ON/OFF SWITCH,FUSE CARRIERS, & OTHER ELECTRICAL SWITCHGEAR ITEMS

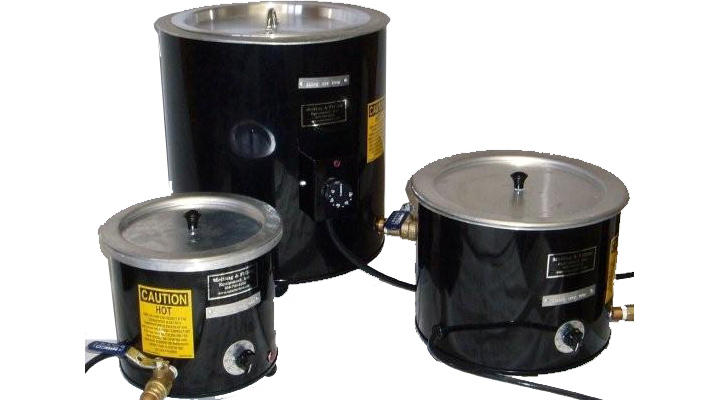

1MT Electrical Wax Melting Tank

Specifications

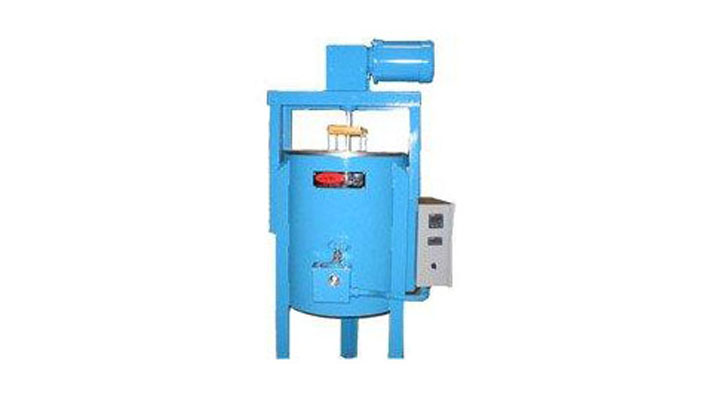

Wax Melter is a wax-melting & conditioning machine extensively used in Investment Casting. Equipment Name & Model No: WAX MELTING & CONDITIONING UNIT : - WM 50 Application: The Wax Melter is a wax-melting and conditioning machine. Purchased IC Wax is in the form of solid slabs. This is melted, conditioned and brought to a certain pre-determined temperature before transferring it to the wax injection machines.

Specifications and Salient Feature

Melting Chamber
Wax Melter is a wax-melting & conditioning machine extensively used in Investment Casting. Equipment Name & Model No: WAX MELTING & CONDITIONING UNIT : - WM 50 Application: The Wax Melter is a wax-melting and conditioning machine. Purchased IC Wax is in the form of solid slabs. This is melted, conditioned and brought to a certain pre-determined temperature before transferring it to the wax injection machines.

MOC : MS.
Thermal Insulation: The melting chamber is insulated on all sides with 64 Kg/m3 Ceramic fiber and clad with powder coated MS sheet for protection

Heat Source
4 Nos. strip heaters for quick melting on slab melter designed for easy access during maintenance.

Melting rate
15Kgs / hr.Conditioning Tank : 50 Kgs capacity, Dia. 400mm X 500mm Ht.

Heat Source
Electrical finned air heater designed to maintain constant tank temperature. The heater is easily accessible for maintenance.

Stirrer
A sturdy and well-designed stirrer mounted on thrust bearings is provided to ensure homogeneity of the wax blend.

MOC : MS
Stirrer Drive : 1/4th Hp geared motor 3Phase AC supply 415V. Make REMI / Bonfiglioli Wax drain : 3/4th heavy-duty ball valve. Provided with a drain heater.

Melting rate : 15Kgs / hr.
Conditioning Tank : 50 Kgs capacity, Dia. 400mm X 500mm Ht.
