Specifications

Tubular Air Heater with Fins Applications:
  • 1. Plastic Industry
  • 2. Foundries
  • 3. Packaging Industry
  • 4. Engineering Industry

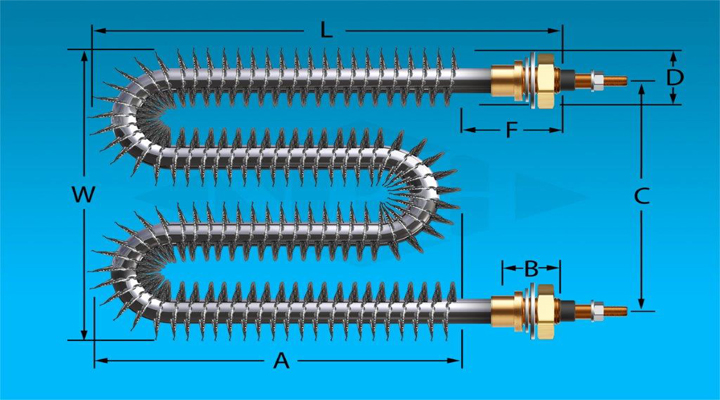

Tubular Air Heater with Fins

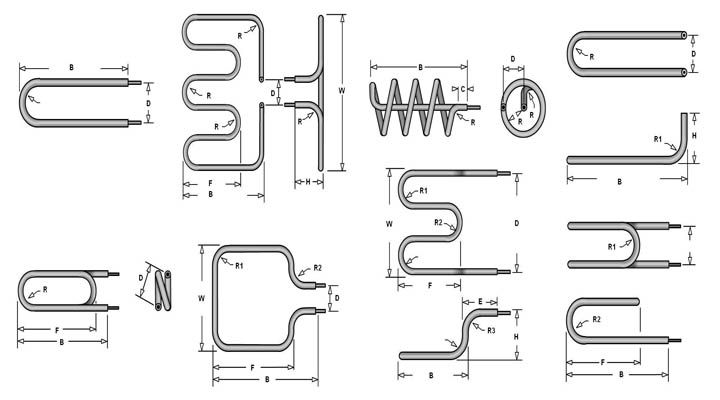

Plain tubular heaters are available in straight lengths or bent as per customers requirement with threaded stud connection at both ends. Finned tubular heaters have enlarged surface area to help faster dissipation of heat.


Tubular Air Heaters Applications:

  • 1. Industrial Ovens
  • 2. Powder Coating Plants
  • 3. Domestic Appliances
  • 4. Air Conditioning systems
  • 5. Recirculating drying ovens
  • 6. Forced air duct heating
  • 7. Textile MachineryDuct Heating
  • 8. Textile Machinery
  • 9. Corrugating Paper Industry
  • 10. Plastic Industry
  • 11. Foundries
  • 12. Packaging Industry
  • 13. Engineering Industry
  • 14. Medical & Laboratory Equipments
Surface Loading Upto 40 - 60 w / in 2
Voltage Upto 415 V
Surface Temperature 600℃ Maximum
Available Diameters 7, 8.2, 11 mm
Fin Diameter 28, 32 mm (std)
Sheath Material Chrome Nickel Steel
Dist between Fins 5 - 6 mm

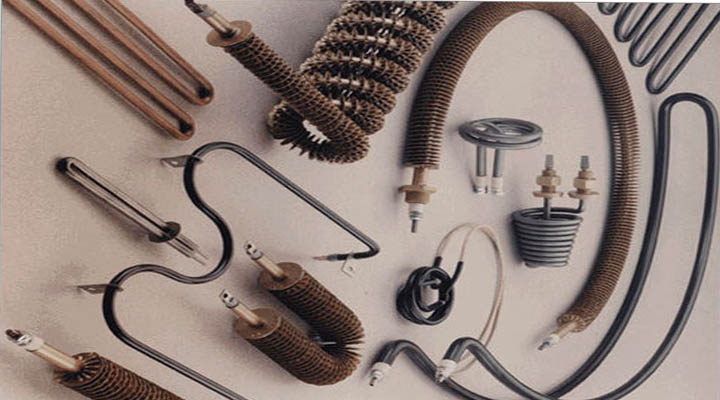

Product Range For Various Heaters

STANDARD HEATERS
  • Kettle Elements with Ejection Devices
  • Industrial Water Immersion Heating Elements
  • Commercial Water Immersion Heating Elements
  • Oil Immersion Heating Elements
  • U-Tube Air Heating Elements
  • Finned Air Heating Elements
  • Alkaline and Chemical Immersion Heating Elements
  • Lead Covered Immersion Heating Elements

IFC KETTLE ELEMENTS WITH EJECTION DEVICE

IFC INDUSTRIAL WATER IMMERSION HEATING ELEMENTS

IFC COMMERCIAL WATER IMMERSION HEATING ELEMENTS

IFC OIL IMMERSION HEATING ELEMENTS

IFC U-TUBE AIR HEATING ELEMENTS

IFC FINNED AIR HEATING ELEMENTS

IFC ALKALINE AND CHEMICAL IMMERSION HEATING ELEMENTS

IFC LEAD COVERED IMMERSION HEATING ELEMENTS
