Immersion Heater

We are one of the leading Manufacturer, Exporters of Industrial Heaters All over the world. Tubular elements used for heating liquids (corrosive and non-corrosive) are known as immersion heaters. For corrosive medium, sheath of the element can be enclosed in metallic or non-metalic Element casing made of special alloy can be used for longerlife of the element.Available in ranges of 1 KW to 18 KW with adaptor fittings 1" B.S.P to 21/2 " B.S.P threaded brass flanges duly nickel Chromium plated. Heaters high rating are available on request with flanged connections. The Photographs are those of water 7 oil immersion heaters simultaneously.



Applications :

Air-conditioning, Pharmaceutical.chemical, textile, nuclear and many more industries.
TYPE IFCIH/I/20/220 WATTS 1000 VOLTS 230 IMMR.DEPTH 220 FLANGE1.25” BSPT
IFCIH/I/20/220 2000 230 220 1.25” BSPT
IFCIH/I/30/280 3000 230 280 1.25” BSPT
IFCIH/I/30/220 3000 230 /415 220 1.50” BSPT
IFCIH/I/40/260 4000 230 /415 260 2” BSPT
IFCIH/I/60/380 6000 230 /415 380 2” BSPT
IFCIH/I/90/550 9000 230 /415 550 2” BSPT

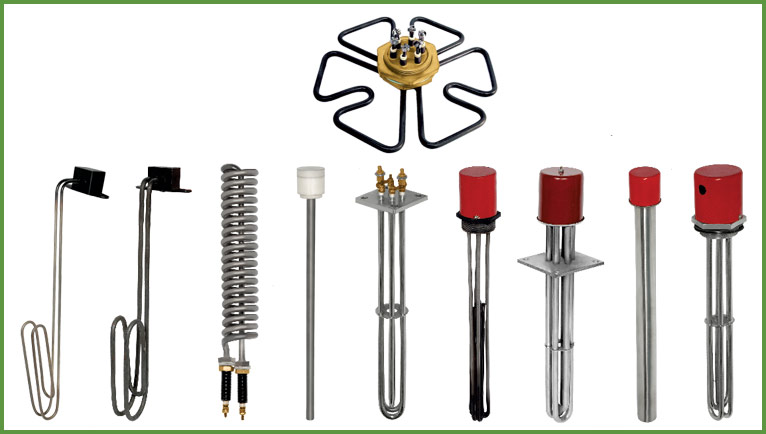

Product Range For Various Heaters

STANDARD HEATERS
  • Kettle Elements with Ejection Devices
  • Industrial Water Immersion Heating Elements
  • Commercial Water Immersion Heating Elements
  • Oil Immersion Heating Elements
  • U-Tube Air Heating Elements
  • Finned Air Heating Elements
  • Alkaline and Chemical Immersion Heating Elements
  • Lead Covered Immersion Heating Elements

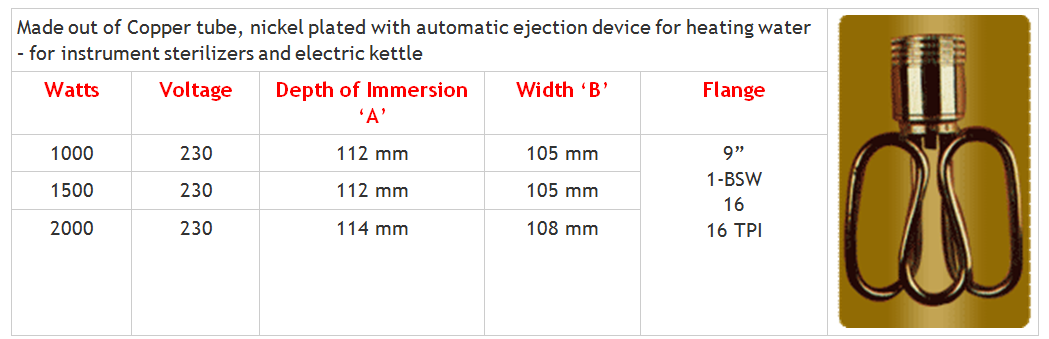

IFC KETTLE ELEMENTS WITH EJECTION DEVICE

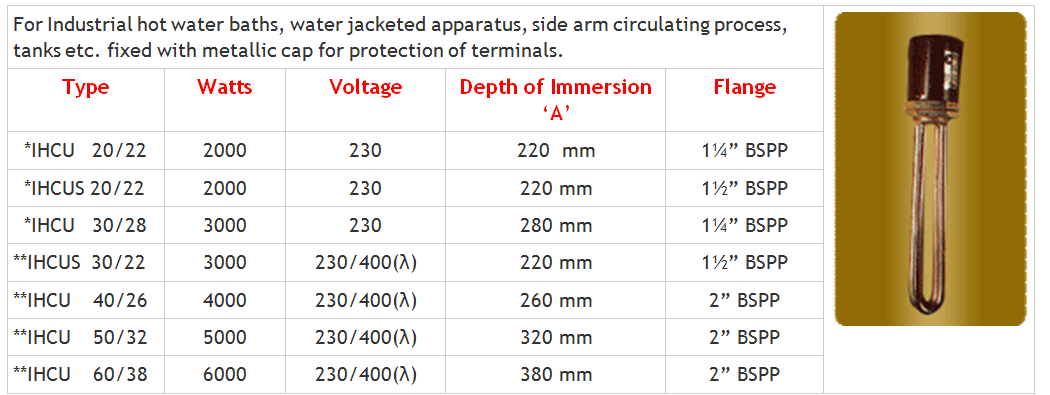

IFC INDUSTRIAL WATER IMMERSION HEATING ELEMENTS

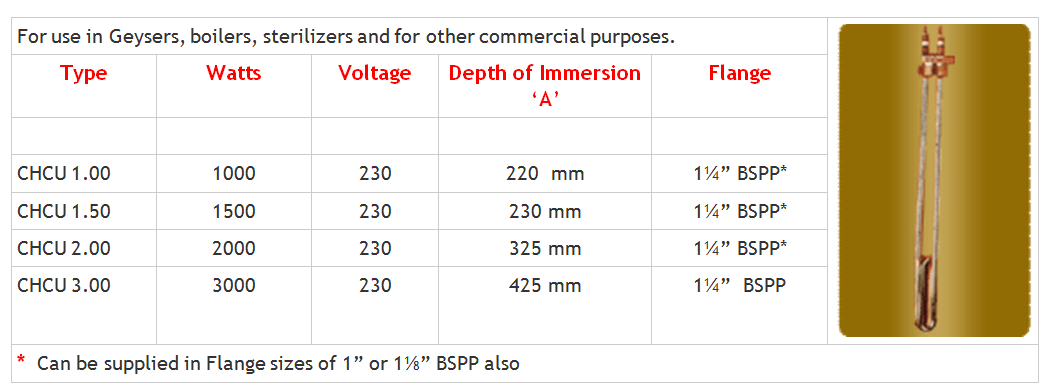

IFC COMMERCIAL WATER IMMERSION HEATING ELEMENTS

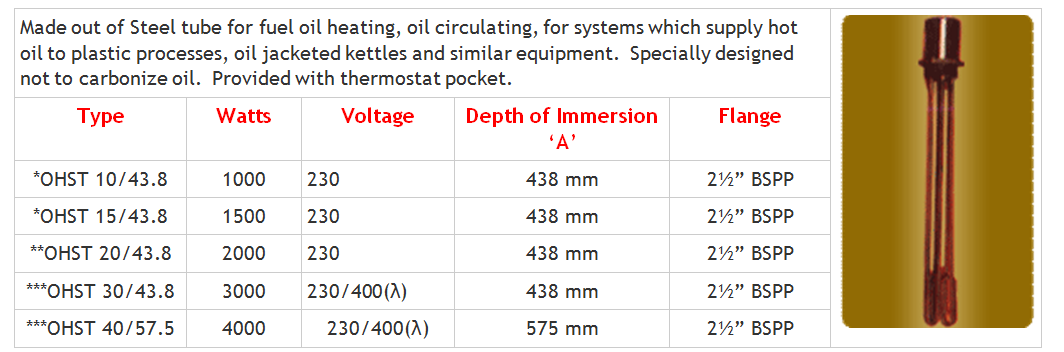

IFC OIL IMMERSION HEATING ELEMENTS

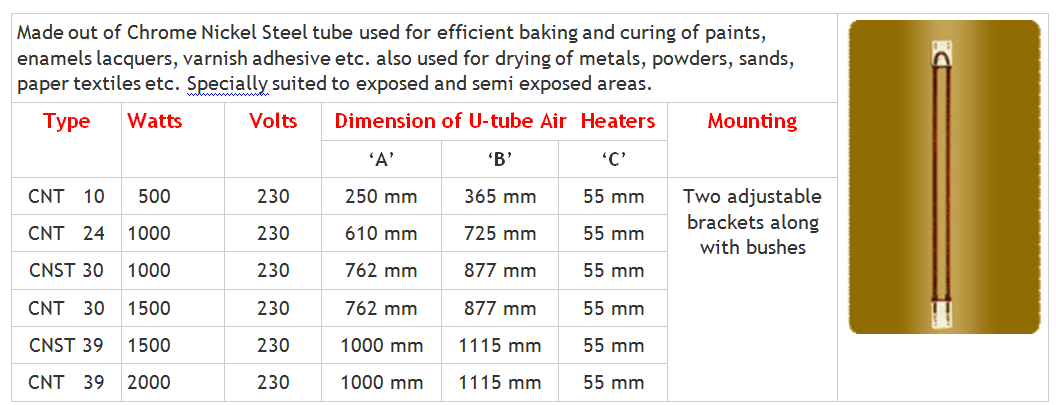

IFC U-TUBE AIR HEATING ELEMENTS

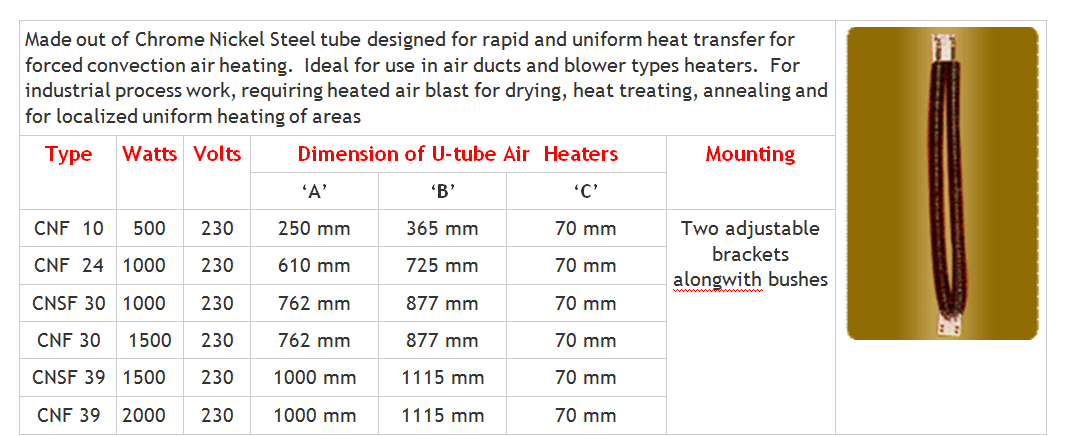

IFC FINNED AIR HEATING ELEMENTS

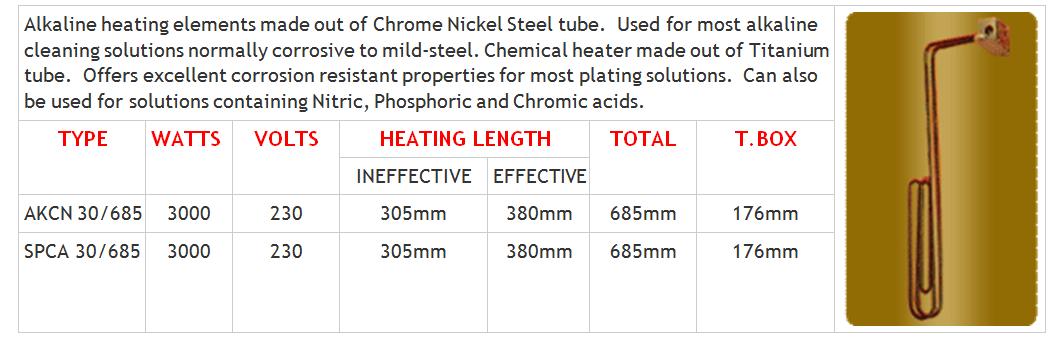

IFC ALKALINE AND CHEMICAL IMMERSION HEATING ELEMENTS

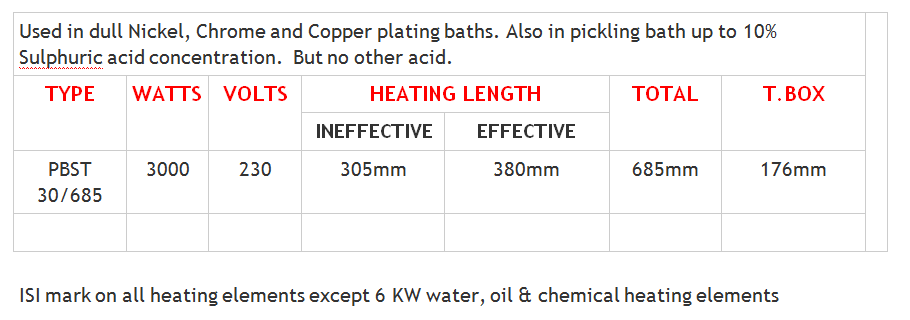

IFC LEAD COVERED IMMERSION HEATING ELEMENTS
