Special Feautures

  • Digital single set point temperature 950oC to 1800oC
  • Ceramic wool insulation permits faster heat up, reducing energy consumption
  • Door safety switch stops power to heating elements when door is opened.
  • Equipped with thermocouple break protection, that helps preventing thermocouple failure runway condition

Other Feautures

  • Simple Installation
  • Hassle free operation
  • Automatic temperature control
  • Easy maintenance
  • Spare parts available at stock

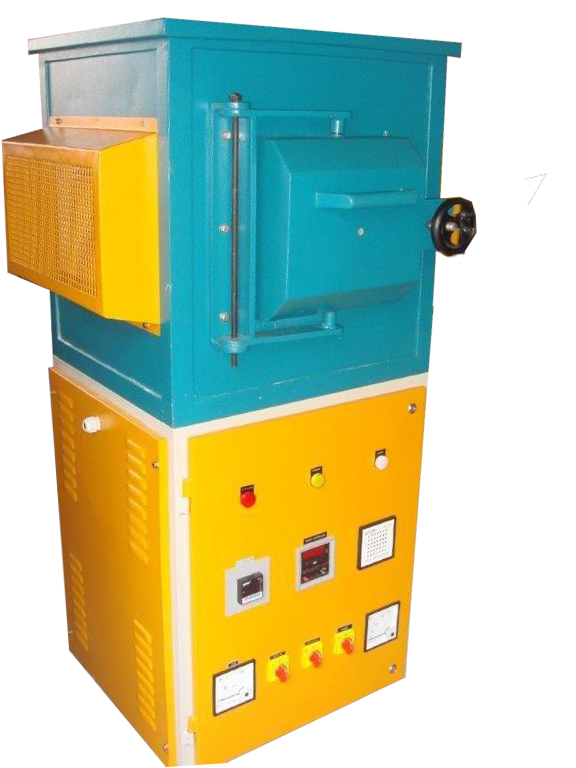

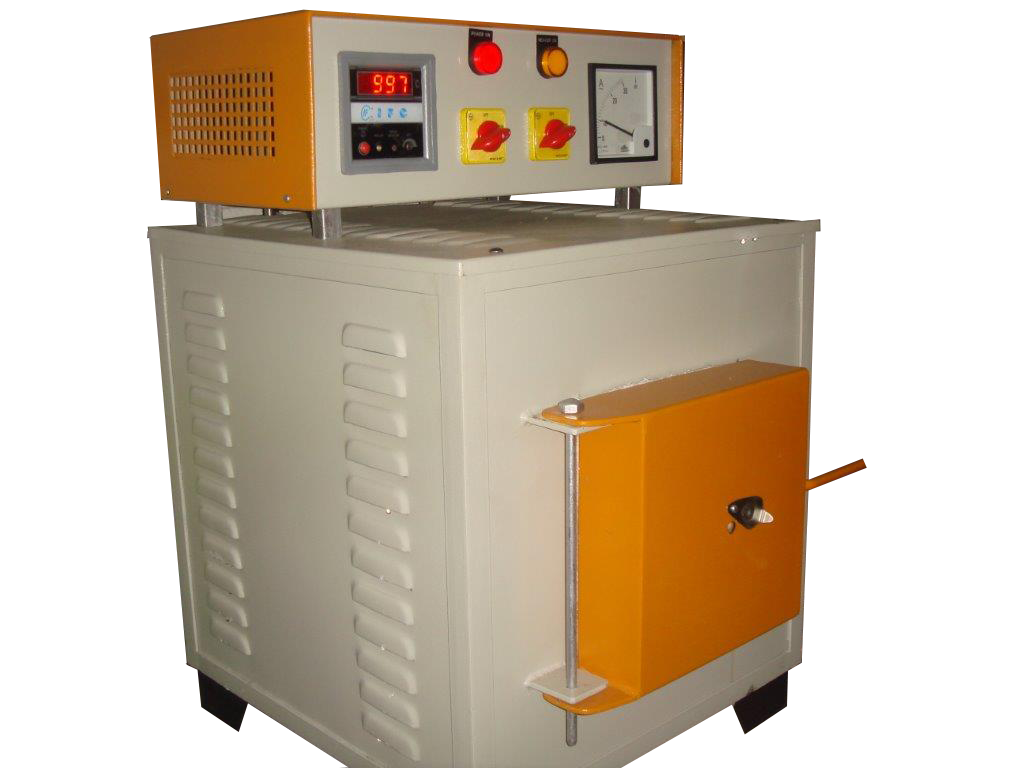

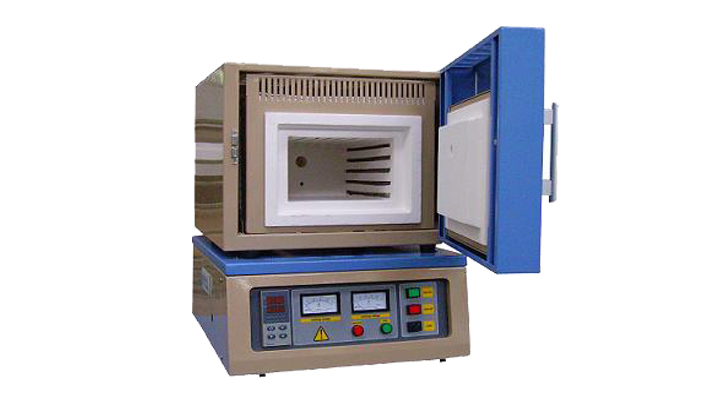

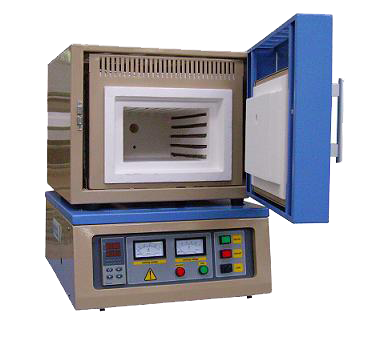

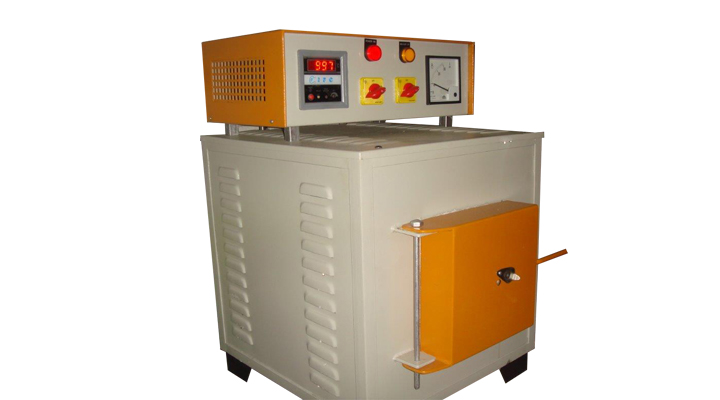

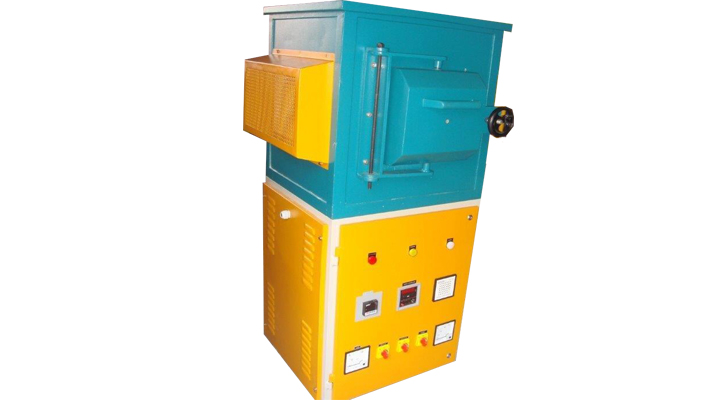

MUFFLE Furnace

When comes to choose finest quality muffle furnace IFC presents a nice selection of laboratory furnace, portable furnace, industrial furnace, benchtop furnace and more. Designing and manufacturing custom muffle furnace is our speciality.

Industrial Furnace And Controls presents a wide range of general purpose benchtop laboratory muffle furnace and industrial furnace, especially built for laboratories and production industries where accuracy and safety are foremost requirements. These muffle furnace models are durable from top to bottom, energy efficient and perfectly work in tough conditions.

Coming with ergonomic design, these muffle furnace by Industrial Furnace And Controls are easy to install and operate. Just set your desired process temperature and the digital controller will heat and control your furnace automatically. Our furnace models are designed for applications such as ashing most types of organic and inorganic samples, ceramics firing and decorating, wax burn-out, copper enameling, mold heating, crucible melting of non-ferrous metals, assaying, and for determination of volatile and suspended solids. Our group of furnaces is insulated with thermal efficient material for cost and energy efficient operation. The outer case of is made of double walled thick PCRC sheet and duly painted with attractive stove enamel. Gap between the walls is insulated with special grade ceramic wool with high grade international standard heating elements arranged at the side of the furnace to give even temperature. +/10oF temperature uniformity may be achieved with this heating element. For convenient access and viewing, furnace controls are mounted on front panel.

We are supplying our standard muffle furnace models which are designed for maximum temperature of 1800oC as well as we also expertise in manufacturing of customized furnace and also export them to various countries such as middle east Asia, African countries, Bangladesh, Nepal, Bhutan and many others. Let's take a tour of special features of our muffle furnace which make them model perfect for laboratories and scientific researches. Our muffle furnace models are available in various sizes and we also manufacture customized designs as per customer requirements.

Main Specifications

Temperature Range 950℃To1800℃
Temperature Uniformity +/- 1℃
Rise TIME 25 Min
Power 220 Volt/50Hz
Temperature Control LCD/LEC Microprocessor Control System
Outer Chamber M.S.Steel
Inner Chamber Ceramic
Heater High Quality International Standard
Digital Timer Optional
Safety Fuse Thermo Couple Fuse
Motor Speed 1/20HP or More
Drain Pulg Yes

Available Sizes

Dimension (W x D x H)mm Wattage(KW) Power Consumption
100×100×225 1.5   7 Amp
125×125×250 2.0   8 Amp
150×150×300 3.0 13 Amp
125×175×475 4.0 18 Amp
175×175×475 4.5 20 Amp
200×200×300 5.0 24 Amp
Note: These are instant available sizes; we also manufacture large size or any specific one meeting individual requirements.
