High Temperature Furnace / PLC Furnace

  • Mainly used in ceramic or Refractory industries
  • High temperature furnaces with maximum operating temperatures of 1400℃, 1500℃ , 1600℃ & 1700℃
  • Chamber capacities of 3, 8, 15 & 35 litres
  • Powerful silicon carbide / MoSi2 elements located on both sides of the chamber ensure good thermal uniformity
  • Silicon carbide elements can withstand the stress of everyday operation and provide good longevity

  • Hardwearing refractory brick in chamber entrance and hearth provide good resistance to abrasion
  • Elsewhere, lightweight ceramic fibre insulation is used which ensures good energy efficiency and rapid heating
  • Vertical counter-balanced door keeps hot door insulation away from operator
  • Postive break door safety switch isolates chamber from power supply, when the door is opened
  • Double skinned construction allows convection air flow to cool the outer case, to conform to EN61010 safety standard
  • Choice of PID controller or programmers
  • Applications in general industry include sintering alumina, smelt trials and checking Al2O3 content in alumina
  • Applications in the ceramics industry include disintegration, testing and analysis of cement samples, refractory porosity tests, long term high temperature temperature tests and firing & sintering of ceramic samples
  • Applications in the semi-conductor industry include annealing silicon, silicon carbide & nitride samples and solid state synthesis

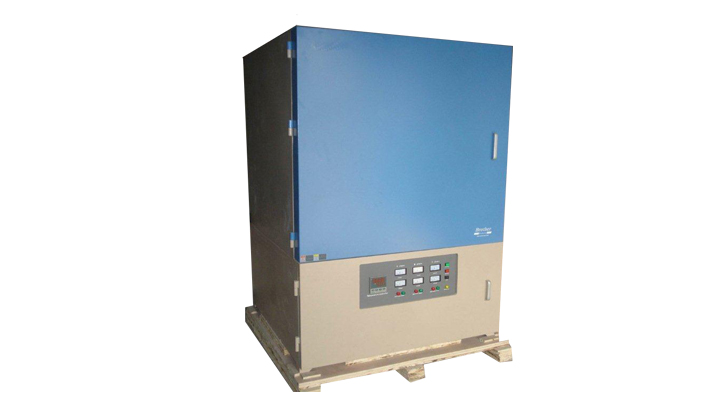

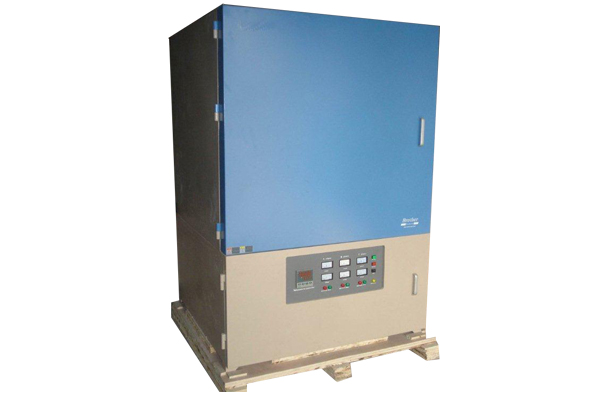

1600℃ Furnace

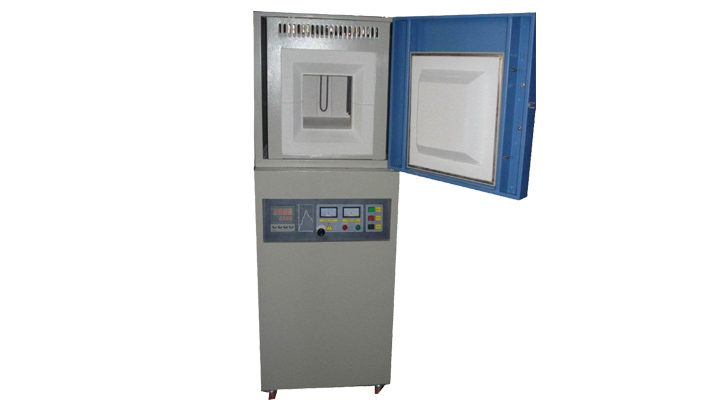

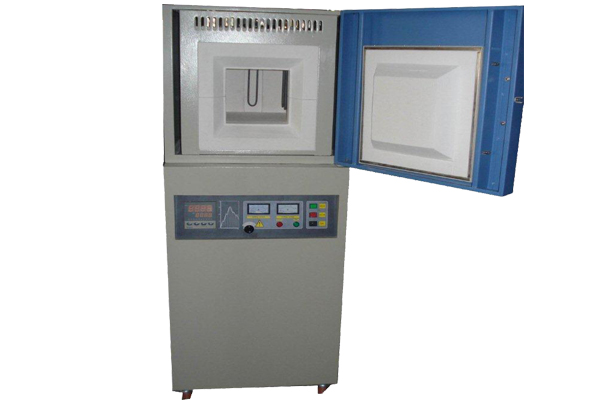

1700℃ PLC Furnace

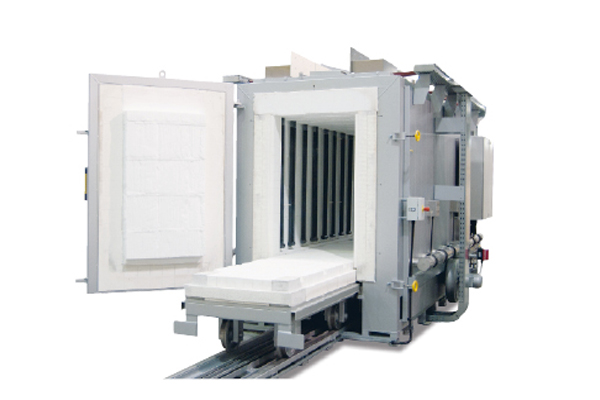

1300℃ Furnace(Trolly Type)

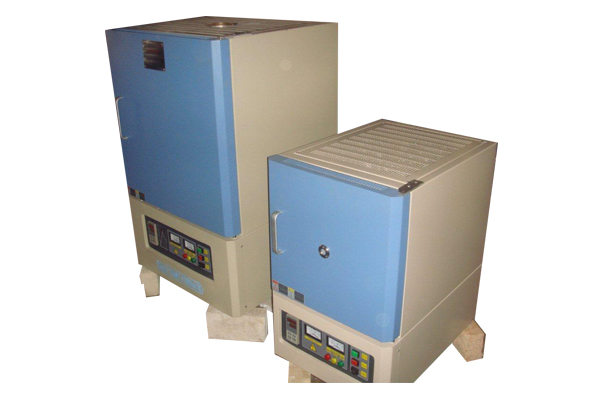

1400℃ Furnace

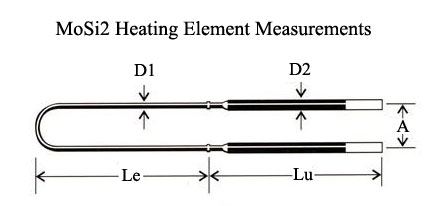

MOSi2 Heating Element

The brittleness of MoSi2 heating element is relative more under the usual temperature, it also has plasticity under the high temperature. So you had better hang and erect vertically the "U"-shape element. If you need to erect it horizontally, please choose a support of high-temperature insulating materials. The cone-part of the element must extend inside the furnace. At first the fixture of MoSi2 power connector can’t be screwed too tightly. When temperature of the element is going up, please twist it tightly again, so the element is not easily broken.

Now our company supply two types MoSi2 heating elements, one is M1700 type, which ensure max. furnace temperature 1650C; another is M1800 type, which ensure max. furnace temperature 1700C. When you place order, please choose suitable type according to your furnace working temperature.

M1700 (heat furnace temperature 1650℃ )

M1800 (heat furnace temperature 1700℃)
