Kanthal / Nichrome Heating Element

Ready-made metallic heating elements made from wire or strip in Kanthal iron-chromium-aluminium alloys or Nikrothal nickel-chromium alloys for element temperatures between 50 - 1200°C Element types.

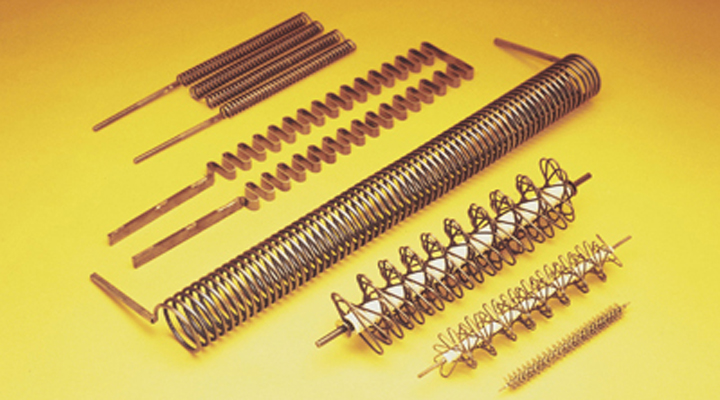

We can manufacture metallic heating elements to any specifications and with short delivery times. Examples of element types are:

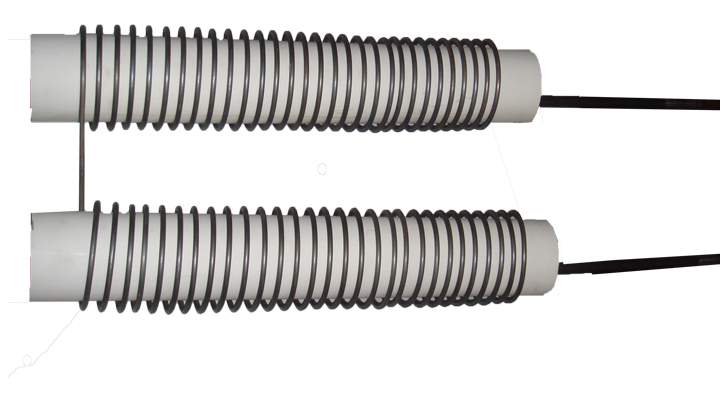

  • Coiled elements (i.e. spiral elements and edge-wounded elements)
  • ROB - Meander elements
  • Cartridge elements (i.e. bundle rod elements and cage elements)
  • Tubothal heating element
  • Metallic heating element alloys

Kanthal and Alkrothal FeCrAl alloys are characterized by high resistivity and capability to withstand high surface load. They can be used at maximum element temperature of 1425°C (2600°F).

The NiCr-based alloys are characterized by very good mechanical properties in the hot state as well as good oxdiation and corrosion properties. They are suitable for element temperatures up to 1250°C (2282°F)

Using Kanthal FeCrAl alloys instead of NiCr alloys results in both weight-saving and longer element life, leading to considerable cost savings.

Main Specification:

Grade Maximum continuous operating temperature Resistivity at 20℃ Ω mm2m-1 / 68℉ Ω /cmf
FeCrAl alloys
Kanthal APM 1425℃(2600℉) 1.45/872
Kanthal A-1 1400℃(2550℉) 1.45/872
Kanthal AF 1300℃(2370℉) 1.39/836
Kanthal D 1300℃(2370℉ 1.35/812
Alkrothal 1100℃(2010℉) 1.25/744
NiCr alloys
Nikrothal 80 1200℃(2190℉) 1.09/255
Nikrothal 70 1250℃(2280℉) 1.18/709
Nikrothal 60 1150℃(2100℉) 1.11/668
Nikrothal 40 1100℃(2010℉) 1.04/626
