Data Logger

Input channels are isolated for all inputs except RTD
Communication (RS 485/RS232) with software up to 4 Alarms, 3 Inputs, I/O.
Common/ Independent Low & High Alarm relays for each channel.
24VDC Power supply for 2 wire transmitters – on 3 channels.
High accuracy (14 bit resolution), μP based.
Self Diagnosis function: Input fail safe operation.
Extended alarm function.
Advanced parameter protection function can be set to avoid any illegal operation.
Flow integration with temp & Pressure compensation for steam & supersaturated steam.
EMI /ESD protection; CE approved
Data logging software

No. of Channels	4, 8, 12, 16
Sensor Input	Thermocouple, Pt-100, (4-20)mA, (0-1)V etc... (each channel can be of different input type)
Range	Subject to specified input
Accuracy	Better than +/- 0.1% of the range
Alarms	Common or individual high and low with relay and driver outputs
Data Logging	Real Time with programmable log time and storage time
Interface	Parallel for Printer and Serial (RS232/RS485) for PC with window based software (Modbus ASCII Protocol)
Data Storage	2K to 128K memory bank
Supply Voltage	110/230VAC, 50/60 Hz, 24VDC
Operating / Storage Temperature	0-500C Max. / 0-700C Max. @ 10-85% Rh (Non-Condensing)
Size	192x96 mm.

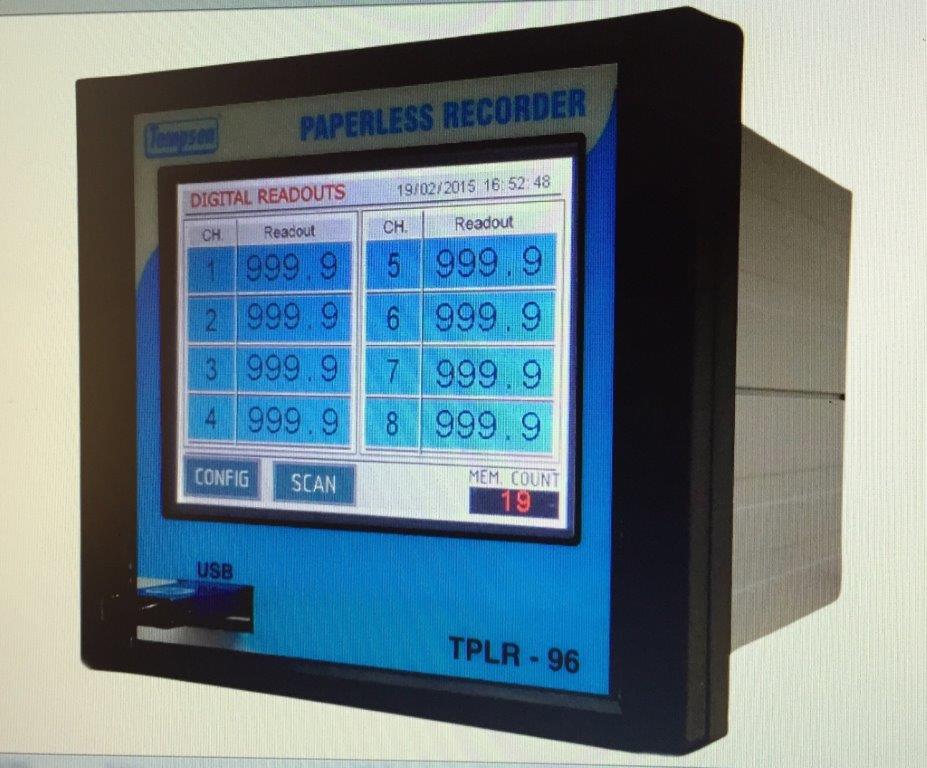

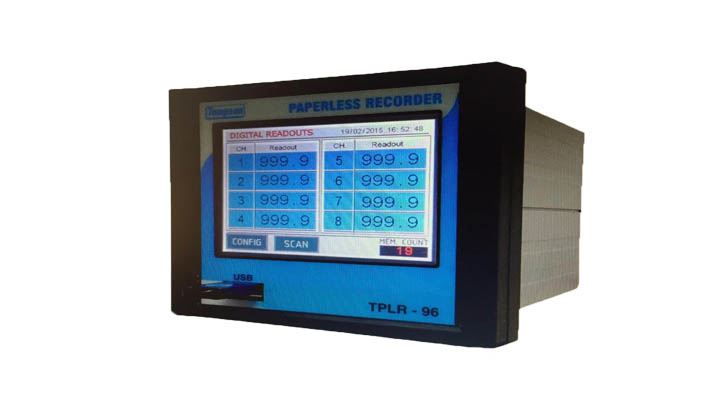

Paperless Recorder

MULTI COLOR TOUCH SCREEN PROCESS PAPERLESS RECORDER with pen drive& RS232 communication and memory Twenty Thousand Per channel
