Mineral insulated thermocouples are probably the most commonly used thermocouples in industry today. They are manufactured from a seamless metal sheath. The thermocouple element is insulated from the sheath by a compacted magnesium oxide powder.The temperature range is governed by the thermocouple type and sheath material.
These thermocouples are avaliable in a range of diameters from 1mm to 8mm. They are self armoured, sealed from the operating environment, extremely flexible and can be bent or shaped without any loss in operational performance.
| SNo. | Type | MI |
|---|---|---|
| 1 | T/C TYPE | R, S, J, K,T,N,E |
| 2 | No Of ELEMENTS | Simplex,Duplex |
| 3 | JUNCTION | GND,ISL |
| 4 | SHEATH | Inconel 600, 310SS, 316SS |
| 5 | OD | 1mm, 1.5mm, 3mm, 4.5mm, 6mm, 8mm |
| 6 | LENGTH | mm/inches/M) |
| 7 | TERMINATION | MPLUG, MSKT, SPLUG, SSKT, TAILS |
| 8 | SPECIAL | 99 |

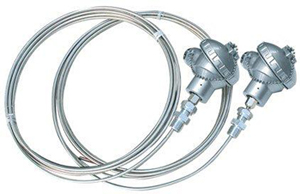

This type of thermocouple construction offers the advantages of a mineral insulated thermocouple together with the mounting and connecting advantages associated with using a connecting head.
| SNo. | Type | MIH |
|---|---|---|
| 1 | REPAIR/HEAD | REP, KNE, GP, LANDS, LANDD, BUS, P, MA |
| 2 | BLOCK | DIN, CER, BAK, TRANS/td> |
| 3 | T/C TYPE | R,S,N,J,K,T,E |
| 4 | NO ELEMENTS | SIM, DUP |
| 5 | JUNCTION | GND, ISL |
| 6 | SHEATH | Inconel 600, 310SS, 316SS |
| 7 | OD (mm) | 1mm, 1.5mm, 3mm, 4.5mm, 6mm, 8mm |
| 8 | LENGTH | (mm/inches/M) |
| 9 | SPECIAL | 99 |
These thermocouples are designed to have the flexibility of MI cable with the added advantage given by the simple construction of the type D thermocouple.With extended operating temperatures ranging from -200°C to +1000°C depending on application and sheath material. (Please contact the office for application advice.)
For suggested options on the probe diameter and lead or armour length see the order code below.
The Type MID can be mounted using a compression fitting.
| SNo. | Type | MIH |
|---|---|---|
| 1 | T/C TYPE | J,K,T,N,E |
| 2 | ELEMENTS | SIMPLEX, DUPLEX |
| 3 | JUNCTION | GND, ISL |
| 4 | PROBE OD | 3mm, 1/8", 4mm, 4.5mm, 3/16", 5mm, 6mm, 1/4", 8mm |
| 5 | "X" DIM | (mm/inches/M) |
| 6 | LEAD TYPE | FG, PVC, PTFE, CNOB, SSOB |
| 7 | ARMOUR | Yes, No |
| 8 | "Y" DIM | (mm/inches/M) |
| 9 | "Y" DIM | MPLUG, MSKT, SPLUG, SSKT, TAILS |
| 10 | SPECIAL | 99 |
| SHEATH MATERIAL | OPERATING TEMP | OPERATING
PROPERTIES |
|---|---|---|
| 312 Stainless steel | 800℃ | Very good corrosive resistance throughout it's operating range. Very ductile. |
| 310 Stainless steel | 1000℃ | Good high temperature corrosion resistance and suitable for use in sulphur bearing atmospheres. Has high oxidisation resistance |
| Inconel 600 | 1100℃ | Suitable for use in severly corrosive atmospheres to elevated temperatures. Do not use in sulphur bearing atmospheres above 550℃ |
| AISI 446 | 1150℃ | Suitable for use in highly corrosive atmospheres to the extended temperatures.Particularly suitable for use in sulphur bearing atmospheres. |
| Nicrobell C | 1250℃ | Excellent performance in oxidising, reducing and vacuum atmospheres. Do not use in sulphur bearing atmospheres |
| Platinum/10% Rh | 1500℃ | For use with rare metal thermocouples, for high temperature applications, can be used up to 1650℃ intermittently |
